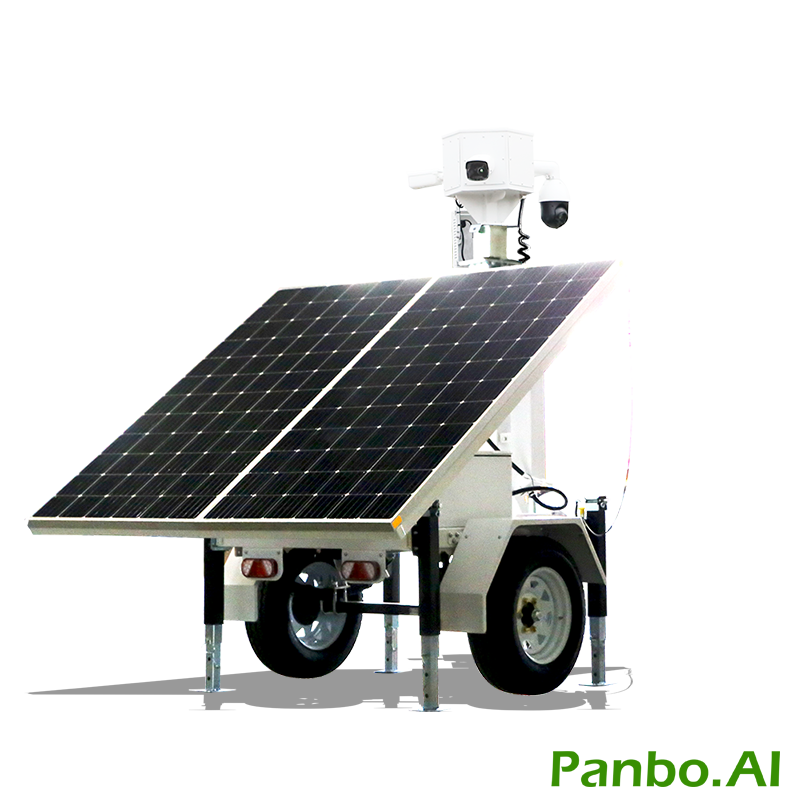

Mobile surveillance trailer
Mobile surveillance trailer
Mobile surveillance trailer
Mobile surveillance trailer
Mobile surveillance trailer

Mobile surveillance trailer

Mobile surveillance cloud trailer
Fast deployment surveillance
Seamless remote guardian platform connection

Mobile surveillance trailer

Select the number of specifications

Please check the product information you want!

Product Detail




DIMENSIONS


SURVEILLANCE SYSTEM

Length:

133.85 inch(3400mm)


Camera Type:

Any brand IP Cam/Speaker

Width:

58.66 inch(1490mm)


Recorder:

Any brand NVR or NAS

Height:

95.47 inch(2425mm)


Network Module:

Any brand

Weight:

1322-1763lb(600-800kg)


Mast Height:

23.62’’/29.53’’/35.43’’

(6m/7.5m/9m)

TRAILER



Mast Type:

Manual/Electric/Hydraulic

Trailer Type:

Mobile


Brake Type:

Mechanical/Electric

Tire and Rim Size:

15'


Coil Cable:

Yes

Outrigger:

4xManual


Charger:

Yes

Hitch Post:

Fold/Unfold


Inverter:

Yes

Tow Hitch:

50mmBall/70mm Ring


Solar Panel:

2*435 watt

Backup Generator:

Optional


Battery:

7.2kwh/9.6kwh

Working Temperature:

-86°F~140°F(-35°C~60°C)


Network Switch:

Any brand

Trailer Standard:

AU/US/EU


Camera Mount:

Square/Hexagon

Color:

White by default


Strobe Light:

Two sets

IP Rating:

IP65


Wind Resistance:

100km/h
